Micro-OLED

Micro-OLED, also written micro-OLED and known in the display industry as OLED-on-silicon or OLEDoS, is a class of OLED display in which the light-emitting organic layers are fabricated directly on top of a silicon CMOS wafer instead of a glass substrate. The silicon serves as both the backplane that switches each pixel and the mechanical base of the panel. Because the transistors and wiring are patterned with chip-fabrication tools rather than the larger features used for glass thin-film transistors, the pixels can be made extremely small, which is why a Micro-OLED panel is usually only about half an inch to an inch and a half across yet still packs thousands of pixels per inch.

That tiny size is the whole point for VR and AR. A panel this small cannot be looked at directly, so it sits behind magnifying optics, almost always a pancake stack in recent headsets, that blow the image up to fill your field of view. The payoff is a near-eye picture with no visible gaps between pixels, true blacks because each pixel makes its own light, and very fast switching. The cost is that the panels are expensive to make, they throw away a lot of light through the optics, and getting a wide field of view out of a fingernail-sized screen is hard. Micro-OLED is the display behind the Apple Vision Pro, the Bigscreen Beyond, and a small but growing group of enthusiast PC VR headsets.

How it differs from other display types

The difference between Micro-OLED and the OLED panels in a phone or TV is mostly the substrate. A phone OLED is built on glass, and glass thin-film transistors are large, which caps how small you can make a working pixel. Silicon is a far better backplane for shrinking things: its electron mobility is roughly 1,400 times that of the glass used for conventional displays, so the drive circuitry for a sub-10-micron pixel actually fits underneath that pixel. Silicon also conducts heat much better than glass, which helps when you are pushing a small panel to high brightness. This is why over 90 percent of consumer Micro-OLED panels use a silicon backplane. The practical result is pixel densities in the thousands of PPI, against a few hundred PPI for a typical phone and well under a hundred for a TV.

Against LCD, the gap is about how light is produced. An LCD has a backlight that is always on, and it makes dark scenes by blocking that light with liquid crystal, which is why LCD blacks look grey and the contrast is limited. A Micro-OLED pixel emits its own light and switches fully off for black, so contrast is effectively perfect and there is no backlight bleed. LCoS (liquid crystal on silicon), the reflective microdisplay used in some AR glasses and projectors, also sits on a silicon backplane and reaches high density, but like LCD it modulates an external light source rather than emitting, so it does not match OLED's black level. The trade-off runs the other way on brightness and burn-in: LCD and LCoS can be driven very bright for a long time, while OLED emitters age and dim with use, and a small OLED panel has to work hard to stay bright once a pancake lens has eaten most of its output.

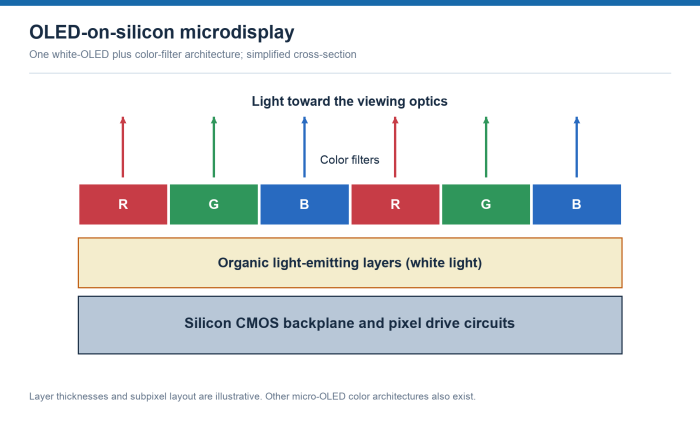

Making color: white OLED plus filter versus RGB patterning

There are two ways to get full color out of a Micro-OLED panel, and the choice has a large effect on brightness.

The common approach is a white OLED stack covered by a red, green, and blue color-filter array, the same basic idea as a LCD color filter. It is easier to manufacture because every pixel uses the same white emitter and only the filter changes, but the filters absorb most of the light. Industry figures put the loss from color filters at roughly 80 percent of the emitted light.

The alternative is to pattern separate red, green, and blue emitters side by side so there is no filter to absorb anything, sometimes called direct patterning. The microdisplay maker eMagin built its business around this with a process it brands dPd (direct patterning display): an early full-color RGB panel reached about 7,500 nits on a 0.9-inch display at over 2,600 PPI, a brightness it credited to dropping the color filter entirely, and later prototypes pushed past 10,000 nits. Direct patterning is harder to do at very high density, so most shipping VR panels, including Apple's and Sony's, still rely on clever pixel layouts and high-efficiency white stacks rather than fully patterned RGB.

It is worth being precise here: a panel described as "RGB stripe," like the one in the Bigscreen Beyond, has red, green, and blue subpixels arranged in stripes, but that describes the subpixel layout and does not by itself tell you whether a color filter is present.

Characteristics that matter for VR and AR

Property	Why it matters in a headset
Very high pixel density (thousands of PPI)	A near-eye magnified panel needs tiny pixels so the lens does not turn the gaps between them into a visible grid, the screen-door effect.
Small diagonal (about 0.5-1.5 in)	Lets the headset and its optics be physically small and light, but forces the use of magnifying optics since you cannot view the panel directly.
Per-pixel emission, true blacks	Each pixel makes its own light and switches off for black, giving contrast an LCD-based headset cannot reach.
High peak brightness	Needed because pancake optics absorb most of the light; folded pancake stacks typically lose on the order of 85-90 percent of the panel's output.
Fast response, low persistence	OLED switches in microseconds, so panels can be driven with short illumination pulses (low persistence) to keep motion crisp and reduce smearing as you turn your head.

The brightness point is the one people underestimate. A Micro-OLED panel that looks blinding on a lab bench can end up merely adequate once a pancake lens has thrown away most of its light, which is why makers keep chasing thousands of nits at the panel for a few hundred at the eye. Sony's VR-oriented panel, for example, is rated at a 5,000 cd/m2 peak specifically so it has headroom to spare after the optics.

Headsets using Micro-OLED

Each entry below was checked individually. Resolutions are per eye unless noted. Where a panel maker is not officially confirmed by the device manufacturer, the cell says so rather than guessing.

Device	Panel maker	Resolution / pixel detail	Year
Apple Vision Pro	OLED frontplane by Sony, silicon CMOS backplane by TSMC	23 million pixels across both panels; 7.5-micron pixel pitch; 92% DCI-P3; 90/96/100/120 Hz	2024
Bigscreen Beyond	Not officially named by Bigscreen; widely reported as Sony	2560 x 2560 on a 1-inch panel, RGB stripe, about 7.2-micron pixels; 75/90 Hz	2023
Bigscreen Beyond 2	Not officially named by Bigscreen	2560 x 2560 micro-OLED; 116-degree diagonal field of view; 75 Hz native, 90 Hz via Display Stream Compression	2025
Shiftall MeganeX superlight 8K	Not officially named by Shiftall; Panasonic Group designed the pancake lens	3552 x 3840 on a 1.35-inch micro-OLED panel; about 27 million pixels total; 10-bit; 90 Hz	2025
Pimax Crystal Super (Micro-OLED engine)	Sony, per Pimax's own product naming	3840 x 3552 per eye; 50 pixels per degree; 90 Hz; swappable optical engine (also sold with a QLED engine)	2025
Panasonic VR glasses (prototype)	Kopin (Lightning 2.6K)	2560 x 2560 on a 1.3-inch panel, about 3,000 PPI	2021

A few candidates were deliberately left out. Sony's Spatial Reality Display (ELF-SR1 and ELF-SR2) is sometimes grouped with this technology, but it is a 15.6-inch or 27-inch LCD with a micro-optical lens for glasses-free 3D, not a Micro-OLED near-eye panel, so it does not belong here. Huawei's original VR Glass (2019) used a 1600 x 1600 LCD per eye; the later Huawei Vision Glass (2022) is the one with a Micro-OLED panel, at 1920 x 1080 per eye, so attributing Micro-OLED to the 2019 product would be wrong.

Panel manufacturers

The Micro-OLED supply base is small, and only a handful of companies can make panels at the density VR needs.

Maker	Notes
Sony Semiconductor Solutions	Came to VR Micro-OLED from camera electronic viewfinders. Its ECX344A is a 1.3-type (33.0 mm diagonal) panel at 3,552 x 3,840, up to 90 fps, 5,000 cd/m2 peak, and 96% DCI-P3, with samples from November 2023. Sony also supplies the OLED frontplane for the Apple Vision Pro.
TSMC	Not an OLED maker, but produces the silicon CMOS backplane wafers that Sony's OLED frontplane is deposited onto for the Apple Vision Pro. A reminder that an OLEDoS panel can be a two-company effort: emitter from one, backplane from another.
BOE	Large Chinese display maker that has moved quickly into silicon-based OLED. Its OLEDoS line includes a 0.49-inch panel at 4,496 PPI with a 3,000-nit peak, and it has announced higher-resolution panels for VR.
SeeYA Technology	Chinese OLEDoS specialist whose panels appear in consumer XR products. Reported, though not officially confirmed, as a display supplier alongside BOE for a future Meta Quest headset.
eMagin (Samsung Display)	US microdisplay pioneer known for direct-patterned RGB panels that skip the color filter for high brightness. Samsung Display acquired eMagin in an all-cash deal of about US$218 million that closed in October 2023, folding the technology into Samsung's microdisplay efforts.
Kopin	US firm whose Lightning-branded Micro-OLED panels (for example a 1.3-inch 2,560 x 2,560 panel at roughly 3,000 PPI, over 1,000 nits) were used in Panasonic's VR glasses prototype.

Remaining limitations

Micro-OLED has not swept the whole market, and the reasons are practical. The panels are costly: chip-style fabrication on silicon wafers is expensive, and yield on very high-density panels is hard, which is part of why headsets built on them tend to sit at the premium end. The small panel size that gives the high density also forces magnifying optics, and pancake stacks lose most of the light, so a lot of the panel's brightness never reaches the eye. Field of view is a real constraint too, because covering a wide angle from a tiny screen demands either a larger panel or harder-working optics; the Bigscreen Beyond 2 and Pimax Crystal Super land around 116 degrees rather than the wider numbers some LCD headsets quote. And like all OLEDs, the emitters age, so sustained high brightness trades against panel lifetime, which keeps pushing makers toward filter-free designs and more efficient stacks just to hold the brightness they have.
